K-power HBL830 Digital Titanium 5.5kg torque HV Brushless Servo Motor Robot Drone RC Servo Motor for RC Cars Robotic Arms

FOB Reference Price:Get Latest Price
  • 10 - 99 Pieces
    $56.88
  • 100 - 499 Pieces
    $54.88
  • >=500 Pieces
    $52.88
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 200 Pieces)
Customized packaging (Min. Order: 200 Pieces)

More

Graphic customization (Min. Order: 200 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HBL830
Model Number:
HBL830
Material:
Aluminum Whole Case
Style:
Radio Control Toy
Power:
Battery
Radio Control Style:
RC Hobby
Operating Voltage Range:
4.8-12V
Servo Dimensions:
40*20*38mm
Operating speed:
0.07sec/60°/6.0V; 0.06sec/60°/7.4V
Running current:
400±30mA/7.4V
Stall torque:
4.4kg-cm/6.0V; 5.5kg-cm/7.4V
Weight:
65 ± 1 g
Spline:
25T
Supply Ability
Supply Ability:
300000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
The servo can be packed PE bag, head card or blister package, transparent box.
Port
Shenzhen; Guangzhou; HK
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Related Products







Product Description

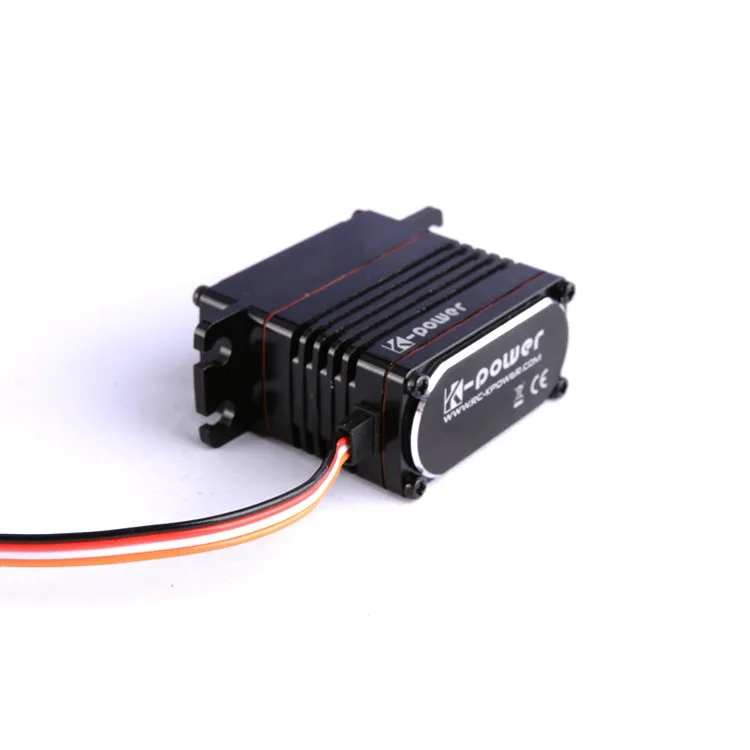

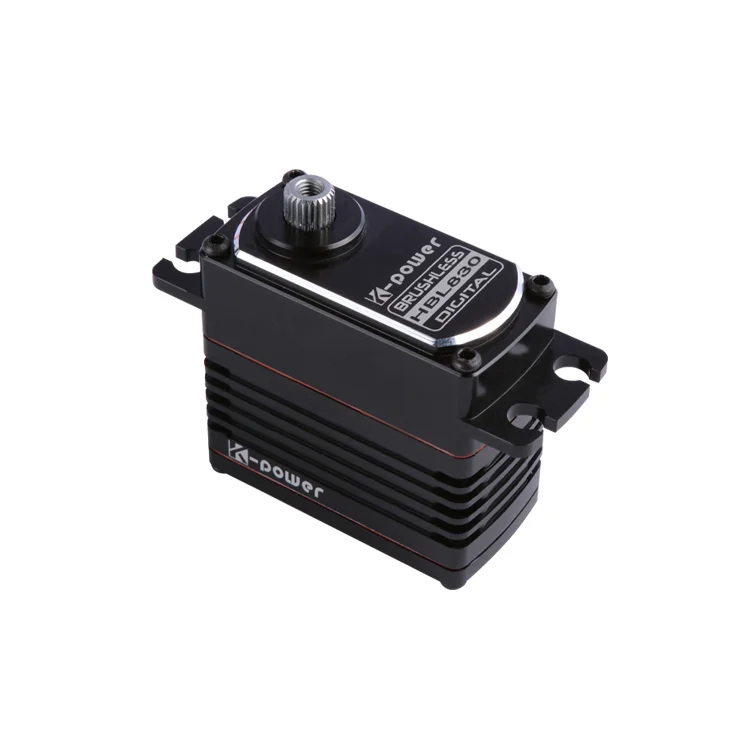

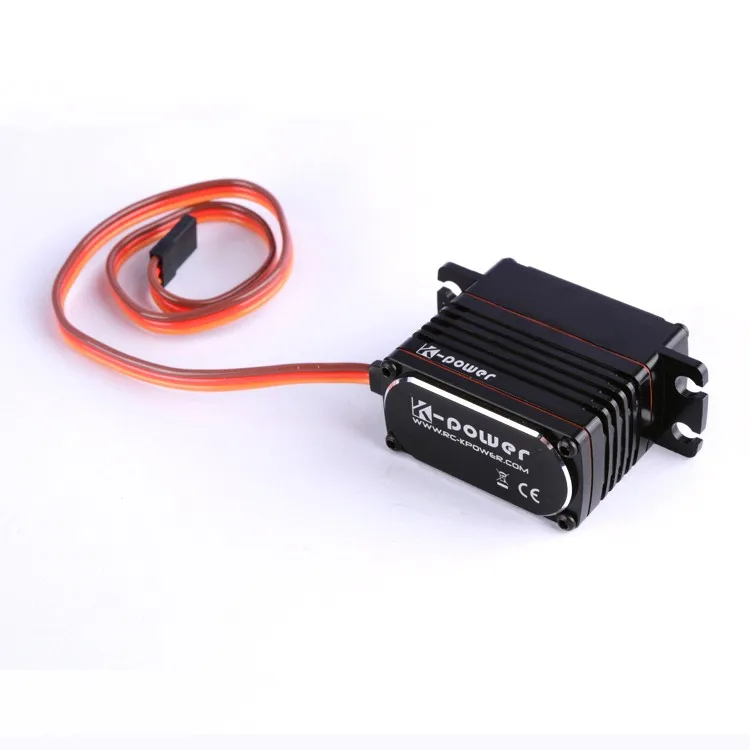

K-power HBL830 Digital Titanium 5.5kg torque HV Brushless RC Servo Motor RC Robot Drone Servo Motor for RC Cars Robotic Arms


Product Description:

Full CNC machined metal case 7075 aluminum designed for exceptional cooling;

Superior holding torque, Japanese brushless motor;

Extremely strong chrome-titanium alloy gear, providing a high level of durability;

Very high speed, incredible efficiency, and low power consumption;

High voltage 2s 7.4V Lipo operation;

Can be done in Waterproof.

SPECIFICATIONS FOR WK-HBL830




Electrical Specification
Item
6.0V
7.4V
Operating speed
0.07±0.01 sec/60°
0.06±0.01 sec/60°
Stall torque
4.4±0.20kg·cm
5.5±0.20kg·cm
Running current
350±30mA
400±30mA
Stall current
1600±40mA
1900±50mA
Idle current
6±1mA
6±1mA
Running life(at no load)
>500000 Turns
>450000 Turns


Control Specification
Dimensions
40*20*38mm³
Amplifier type
Digital controller
Centering deviation
≤ 0.5°
Operating travel
120° (900→2100 μsec)
Weight
65 ± 1 g
Spline
25T
Horn type
Cross, round, star and bar-type
Apply Environmental Condition
Operating Temperature Range
-10℃~50℃
Operating Voltage Range
3.0V~7.4V

K-power Company Introduction:

Established in 2005, certified by ISO9001-2015, K-power Technology Co., Ltd is specializing in R&D and manufacture of all kinds of servos, gearbox, the actuator for RC cars, helicopter, glider, drone, UAV (landing skid), 3D printer Robotic kits, robot toy, smart home application and industrial tool or equipment.
We have an excellent R&D engineering team and skilled workers in servo manufacturing. By now, over 140 types of servos are available.
Company Scale: about 5500 square meters.
Product quality:
K-power servos are with RoHS, CE and FCC certification. Each K-power servo is under strict R&D and quality control.
Business mission:
Teamwork, Innovation, High-quality product, Voice of the customer is prime.
K-power Guarantee:
On the basis of service, survive on quality, and seek development by science and technology.

Certifications
Application



6 dof Robot Arm

Name: Hexbot




RC Helicopter/ Aircraft/ UAV

Grade:   500-600 Class Swashplate





Electric RC Electric Cars

Grade: 1:8; 1:10


Arduino Robot

Name: STEM DIY Education kit

             Humanoid Robot

             BOXING Robot

                 Manipulator Robot

             Boi-robot

             Robot Toys

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Customized servo, and offer sample testing support.

* View our Factory.

After-Sales Service

* Guarantee repair

* Engineers available to service operation.

Packing & Delivery
Packaging
Size
93mm (L) * 65mm (W) * 30mm (H)
Weight
115g

Packaging Details
Customed make package, such as PE bag, headcard, blister package, transparent box are available.



Delivery
We adopt EXW term. Generally, we choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable.
