MM0900 K-power 1/8 rc car throttle servo 9kg high torque metal gear servo

FOB Reference Price:Get Latest Price
$7.00 - $10.00 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
K-power
Model Number:
MM0900
Torque:
9.6kg-cm/4.8V 10.5kg-cm/6.0V
Speed:
0.13sec/60°/4.8V 0.12sec/60°/6.0V
Weight:
58g
Size:
40*20*37.5mm
Gear:
Metal
Ball bearing:
Dual BB
Style:
Radio Control Toy
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Box
Port
Shenzhen
Product Description

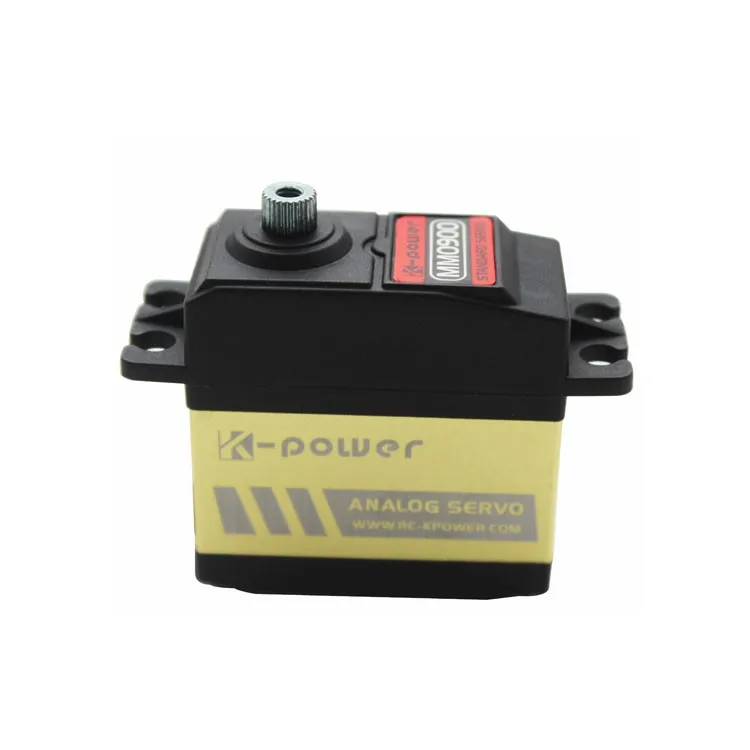

K-power 1/8 rc car throttle servo 9kg high torque metal gear servo MM0900

The aluminum case design not only looks good but also allows for lower operating temperatures.

Metal gears forms a solid framework for precise control and operation.

Suitable for use in cars, robots and retract landing gear.

Ideal for 1: 8/1:10 Car throttle.

Parameter

Model Type:   Analog Servo MM0900

Motor Type:   Brushed

Case material:   Aluminum Mid Case

Gear material:   Metal

Bearing Type:   2BB

Weight:   58g / 2oz

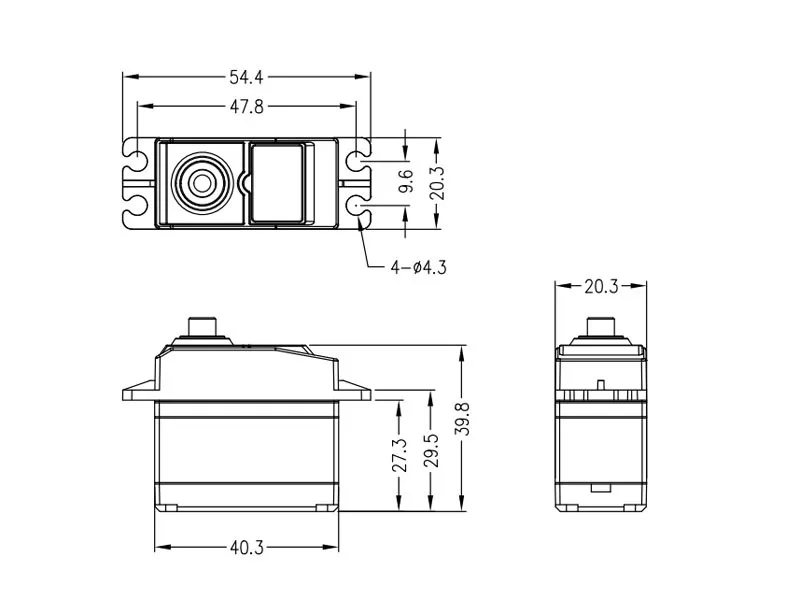

Dimension:   40*20*37.5mm³ / 1.6*0.8*1.5in³

Operation Voltage:   4.8-6V

Torque:   9.6kg-cm/4.8V; 10.5kg-cm/6.0V

132oz-in/4.8V; 145oz-in/6.0V

Speed:   0.13sec/60°/4.8V; 0.12sec/60°/6.0V

Pulse Width:   1000-1500

Dead band width:   4μs

Interface Type:   JR / FT / JST1.5 / JST2.0 / Other

Operating Temperature:   -20 to 60 centigrade

Splining:   25T

Wire Length:   Based on your requirement

Waterproof:   Yes

Certification:   CE & FCC

Application:   RC Car, Robot and Retract Landing Gear

Ideal for:   1: 8/1:10 Car throttle

Service:   Lifetime Warranty. Customized and OEM are available.

Detailed Images

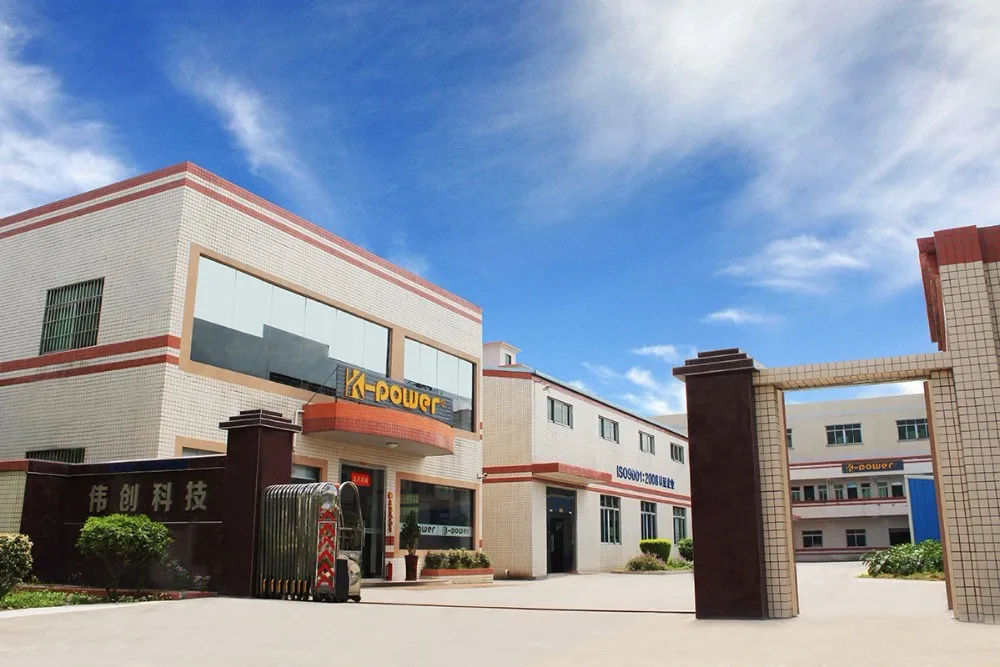

Our Company


Our Departments
We have professional R&D team which guarantee us could give customer technical support in R&D phase and faster feedback.

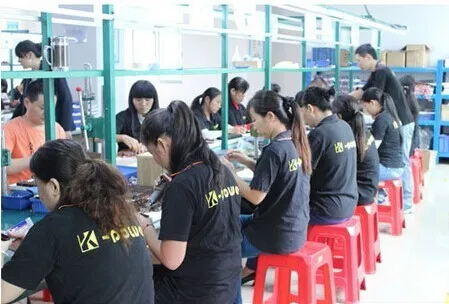

We have own CNC department, gear processing department, welding department, assembly department, QC department and warehouse.

Our Service
Welcome ODM, OEM and Customized product

Shipping
We adopt EXW term. Generally, we choose DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable.

Payment
We adopt T/T payment method. After we receive your payment, we will arrange shipment. All banking charges and interest are charged to purchasers.
