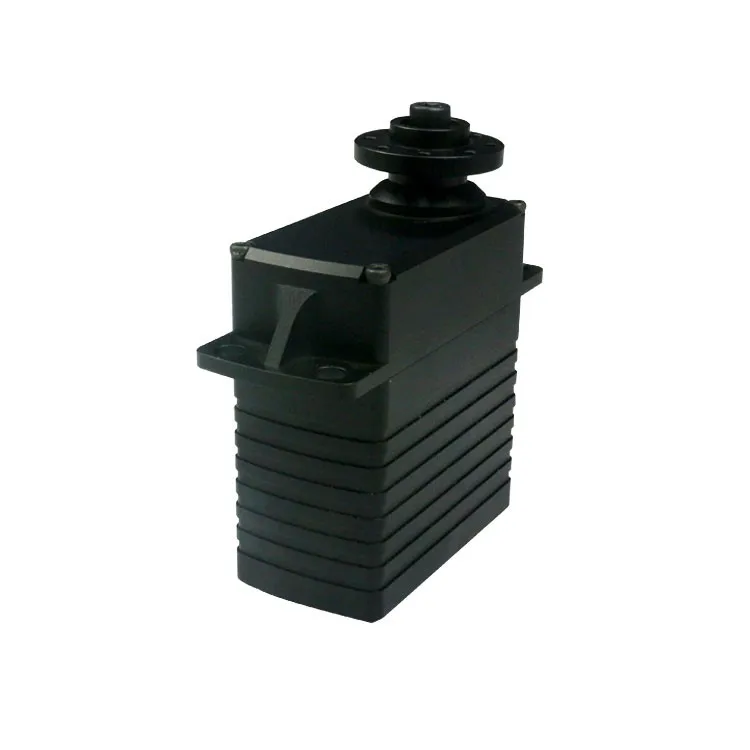

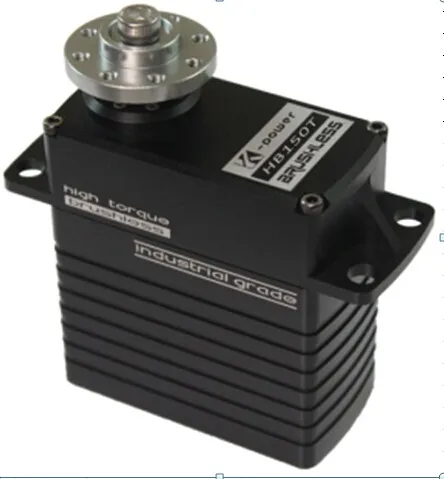

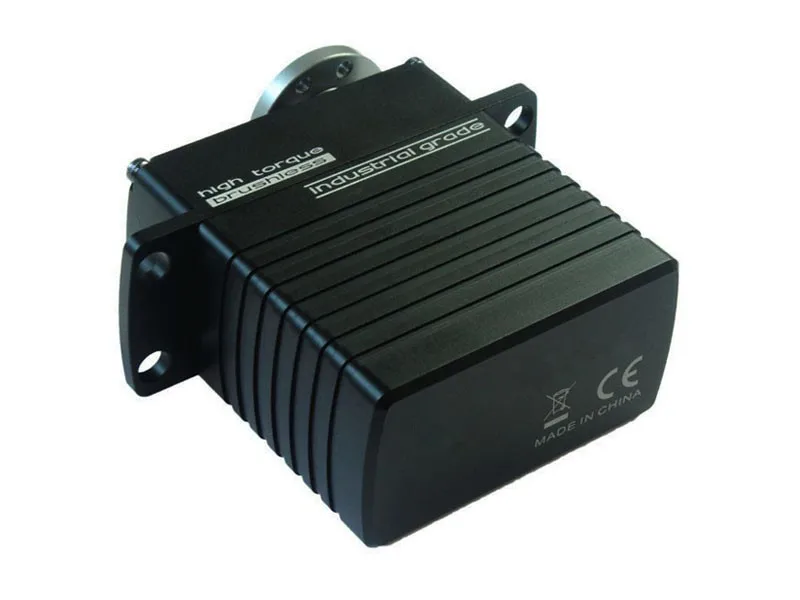

K-power HB150T 150kg-cm high torque Industrial Standard digital servo for agricultural seeding machine

FOB Reference Price:Get Latest Price
$470.00 - $560.00 / Pieces | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Automatic
Use:
Agriculture
After-sales Service Provided:
No overseas service provided
Certification:
ISO9001:2008
Place of Origin:
Guangdong, China
Brand Name:
K-Power
Model Number:
HB150T
Condition:
New
Motor Type:
Brushless
Gear material::
Titanium
Case:
Aluminum Whole Case
Dimension::
64*33*70.1mm
Operation Voltage::
10-14.8V
Torque:
150kg-cm/14.8V
Certificate::
CE & FCC
Application:
RC Airplane, Heli, Car, Robot and agricultural seeding machine
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Package. Also can depend on your demands.
Port
Shenzhen, Guangzhou, Hongkong
Lead Time :
5-15 days after payment received. Also depends on the quantity.
Product Features

K-power HB150T 150kg-cm high torque Industrial Standard digital servo for agricultural seeding machine:


> High torque and high voltage, incredible efficiency
> High-strength metal gears ensure the servo’s life-cycle
> Center aluminium case 150kg-cm/14V RC servo

> Brushless RC servo

Model Type:
Digital Servo HB150T
Motor Type:
Brushless
Case material:
CNC Aluminum Whole Case
Gear material:
Steel
Bearing Type:
2BB
Weight:
330g
NO.of Wire:
5Pin
Voltage Range:
DC 10-14.8V
Rated Voltage:
12V
Stall Torque:
15.2N.M(155kg.cm)
No load Speed:
62.5rpm(0.16s/60°)
Resolution:
0.23°
Interface Type:
JR / FT / JST1.5 / JST2.0 / Other
Communication Method
PWM(deadband 1-2μs)
Operating Temperature:
-20 to 75 centigrade
Position Sensor:
Potentiometer
Wire Length:
Based on your requirement
Certification:
ISO 9001 / CE / FCC
Application:
RC Airplane, Helicopter,  RC car, Agricultural Seeding Machine
Any requirement, please feel free to tell us.
Customized the service for you! Thanks!

Products Show
More Applications

Light switch servo controller


Smart E-lock


Intelligent toilet flushing controller


Smart shutter controller


Fruit picker


Robot Arm


Why choose us

Professional

Having over 13 years’ experience, supplier of  HOBBICO / SHARP / STARA / FOXCONN etc.

R&D Support

Professional R&D Department can provide the supports of constructional design and software.

High quality

Stable product quality, supply, the good faith management.

Our Certifications
FAQ

Q: Can I get a free sample?

A: Some servos support free sample. Please contact with us for more detailed information.

Q: What is your servo's rotation angle?

A: The rotation angle can be adjusted according to your requirements, but it is 0~120 degree if no requirement, please do contact with us if you need special rotation angle.

Q: What is your servo's communication?

A:  PWM, TTL, RS485 are optional. most of servo are PWM if no requirement, please do contact with us if you need not PWM.

Q: Can I get customized servo?

A: Of course! we have an excellent and Professional R&D Department, providing the supports for both constructional design and software. Perfect customization services are our main business.

We are confident we can make any to suit your application!

Q: For a customized servo, how long is the R&D time (Research & Development time)?

A: Normally, 10~50 business days depends on your requirements.
