K-power HB200T 200kg torque steel gear digital servo for industrial equipment

FOB Reference Price:Get Latest Price
$388.00 - $468.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Use:
Vehicles & Remote Control Toys
Place of Origin:
China (Mainland)
Brand Name:
K-power
Model Number:
HB200T
Gear material:
Steel
Case Material:
CNC Aluminum Alloy
Stall Torque:
20.1N.M(205kg.cm)/12V
No load Speed:
55.5rpm(0.18s/60°)
Motor Type:
Brushless Motor
Resolution:
0.23°
Running Degree:
0-180°
Dimension:
64*33*70.1mm
Weight:
330g
Communication Method:
PWM(deadband 1-2μs)
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
BOX packing
Port
Shenzhen, Guangzhou, Hongkong
Product Description

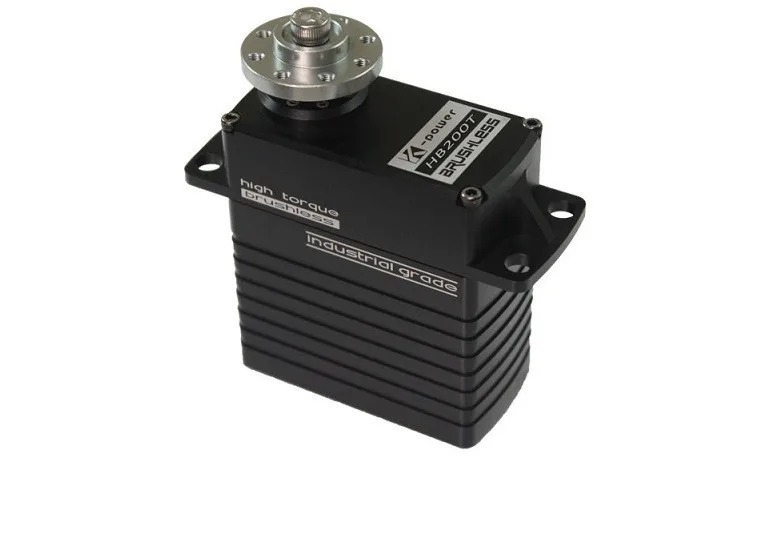

K-power HB200T 200kg torque steel gear digital servo for industrial equipment

Feature

--Industrial Standard High Torque Brushless servo motor.

--CNC machined metal case designed for exceptional cooling.

--Extremely strong steel gear, providing high level of durability.
Parameter
Dimension
64*33*70.1mm
Weight
330g
Voltage Range
DC 10-14.8V
Rated Voltage
12V
Stall Torque
20.1N.M(205kg.cm)
No load Speed
55.5rpm(0.18s/60°)
Motor Type
Brushless
Resolution
0.23°
Running Degree
0-180°
Communication Method
PWM(deadband 1-2μs)
NO.of Wire
5Pin
Position Sensor
Potentiometer
Case
CNC Aluminium Alloy
Gear
Steel
Application:
RC robot, industrial equipment,multirotor
Service:
One year warranty. Customized and OEM are available.
Robot Show

We joined 2018 the 7th China Int'l Robot Show - Service Robot from Jul.4th to Jul.7th at Shanghai.

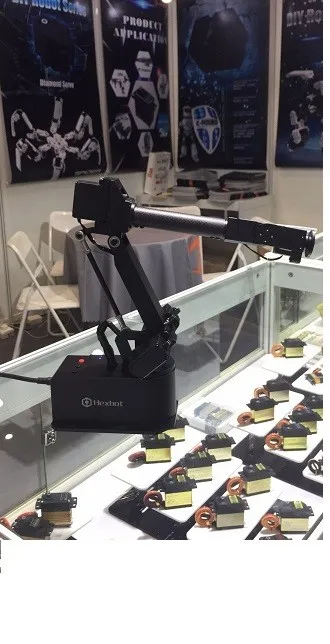

         7BOT Robot Arm                                    RC Servo                                          Waterproof Testing

Servo Certifications

K-Power servo has CE, FCC, ROHS certifications.


Our Company

K-power is a professional servo manufacturer, which established in 2005, and passed ISO9001 in 2015. We are concentrating on servos for RC robot, smart home, RC model, RC car, industrial equipment and agricultural machinery. Our servo has CE, FCC, ROHS certifications. We are keeping R&D various types of servos, such as Digital and Analog, High voltage, Robot Servos with brushless, coreless and brushed motors. Warmly welcome to contact us if you need servo, no matter standard servo or customized servo.

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Customized servo, and offer sample testing support.
* View our Factory.

After-Sales Service

* Guarantee repair
* Engineers available to service operation


FAQ

1.Are you a trading company or manufacturer?
-We are a manufacturer in China.
2. Can I OEM and print my own logo on the products?
-Yes, you can. Just provide us your design files, we will do all the rest for you.
3. How do I know if your products are of good quality?

-Sample order is acceptable for testing your market and checking our quality. And we have strict quality control systems from raw material incoming till finished product delivery out.

4. what is your mass production lead time?
Our production lead time is only around 7-15 days (according to the order QTY) .

5. Can I get a free sample?
-Some servos support free sample. Please contact us for more detailed information.


Quality Control:

Rotation Degree Inspection

Life Inspection

Torque Inspection

Speed Inspection

Noise Inspection

Gear Test
