K-power RC31P 30kg torque coreless rc robot servo 300 degree rotation

FOB Reference Price:Get Latest Price
$45.00 - $52.00 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Use:
RC Robot servo
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
K-power
Model Number:
RC31P
Stall Torque:
3.14N.M(32kg.cm)
Feedback:
Position
Position Sensor:
Potentiometer
Resolution:
0.32°
Voltage Range:
DC 4.8-8.4V
Communication Method:
PWM(deadband 1-2μs)
Dimension:
40*20*37.5mm
Weight:
60g
Case Material:
CNC Aluminium Alloy
Gear Material:
7075 Aluminium Coated With Titanium
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
PE bag, headcard or blister package, transparent box.
Port
Shenzhen, Guangzhou, Hongkong
Lead Time :
7-15 days after payment received
Product Description

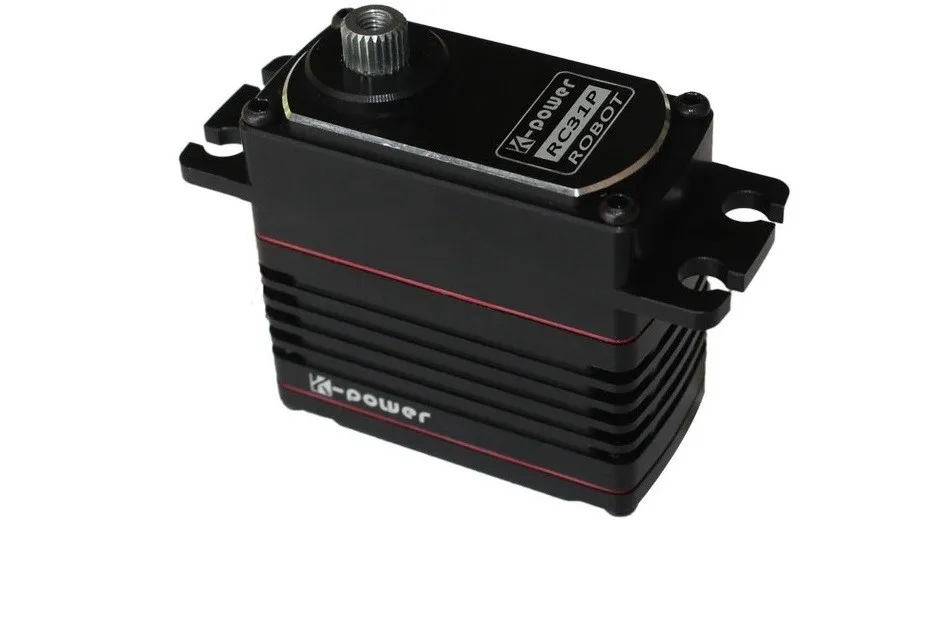

K-power RC31P 30kg torque coreless rc robot servo 300 degree rotation

Feature

--Position feedback.

--Running degree up to 300 degree.

--CNC machined Aluminum alloy case designed for exceptional cooling.

--7075 Aluminum Coated With Titanium gears, run smoothly, precisely.
Parameter
Model Type
Robot Servo RC31P
Dimension
40*20*37.5mm
Weight
60g
Voltage Range
DC 4.8-8.4V
Rated Voltage
7.4V
Stall Torque
3.14N.M(32kg.cm)
No Load Speed
66.6rpm(0.15s/60°)
Motor Type
Coreless
Resolution
0.32°
Running Degree
0-300°
Mode
Servo/Wheel Mode(endless rotation)
Communication Method
PWM(deadband 1-2μs)
NO.of Wire
4Pin
Feedback
Position
Position Sensor
Potentiometer
Case
CNC Aluminum Alloy
Gear
7075 Aluminum Coated With Titanium
Service
One year warranty.Customized and OEM are available
Servo Certifications

K-Power servo has CE, FCC, ROHS certifications.


Our Company

K-power is a professional servo manufacturer, which established in 2005, and passed ISO9001 in 2015. We are concentrating on servos for RC robot, smart home, RC model, RC car, industrial equipment and agricultural machinery. Our servo has CE, FCC, ROHS certifications. We are keeping R&D various types of servos, such as Digital and Analog, High voltage, Robot Servos with brushless, coreless and brushed motors. Warmly welcome to contact us if you need servo, no matter standard servo or customized servo.

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Customized servo, and offer sample testing support.
* View our Factory.

After-Sales Service

* Guarantee repair
* Engineers available to service operation


FAQ

1.Are you a trading company or manufacturer?
-We are a manufacturer in China.
2. Can I OEM and print my own logo on the products?
-Yes, you can. Just provide us your design files, we will do all the rest for you.
3. How do I know if your products are of good quality?

-Sample order is acceptable for testing your market and checking our quality. And we have strict quality control systems from raw material incoming till finished product delivery out.

4. what is your mass production lead time?
Our production lead time is only around 7-15 days (according to the order QTY) .

5. Can I get a free sample?
-Some servos support free sample. Please contact us for more detailed information.


Quality Control:

Rotation Degree Inspection

Life Inspection

Torque Inspection

Speed Inspection

Noise Inspection

Gear Test
