K-POWER HB150T 12V DC Brushless giant torque 100kg torque industrial servo

FOB Reference Price:Get Latest Price
$400.00 - $500.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Use:
Vehicles & Remote Control Toys
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
K-power
Model Number:
HB150T
Servo model:
HB150T
Motor:
brushless
Case material:
metal
Gear material:
steel
Communication:
PWM
Operation Voltage:
DC 10-14.8V
100kg Servo Application:
Industrial equipment, agricultural machine
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
100KG torque servo package: PE bag
Port
Shenzhen, Guangzhou, Hongkong
Lead Time :
10-25 days after payment received
Product Description

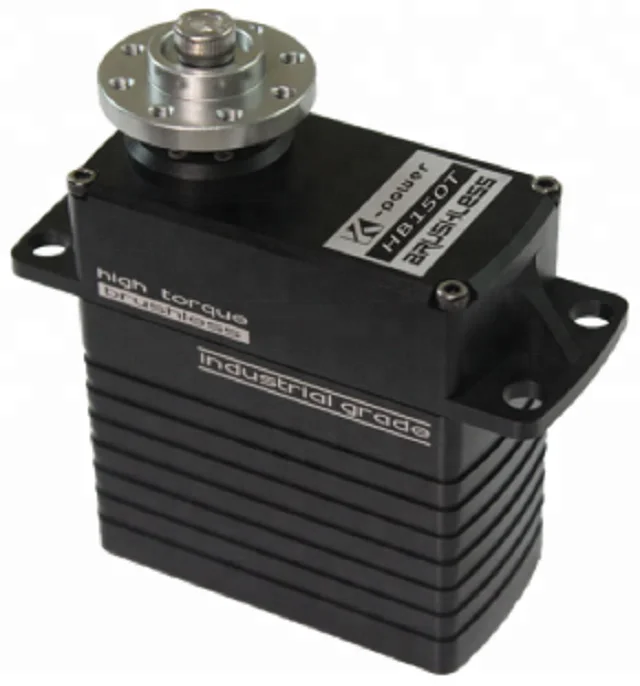

K-POWER HB150T 12V DC Brushless giant torque 100kg torque industrial servo

100kg torque Servo Feature:

1) Giant torque up to 155kg-cm/12v

2) Working voltage: 10-14.8V
3) Steel gear

4) Full 7075 aluminium case
5) Ideal choice for industrial equipment, agricultural machine

100kg torque servo Parameter:

Item No. HB150T
Dimension 64*33*70.1mm
Weight 330g
Voltage Range DC 10-14.8V
Rated Voltage 12V
Stall Torque 15.2N.M(155kg.cm)
No load Speed 62.5rpm(0.16s/60°)
Motor Type Brushless
Resolution 0.23°
Running Degree 0-180°
Communication Method PWM(deadband 1-2μs)
NO.of Wire 5Pin
Position Sensor Potentiometer
Case CNC Aluminium Alloy
Gear Steel
Industrial Standard High Torque Brushless Motors

100kg torque servo Application: industrial equipment, agricultural machine

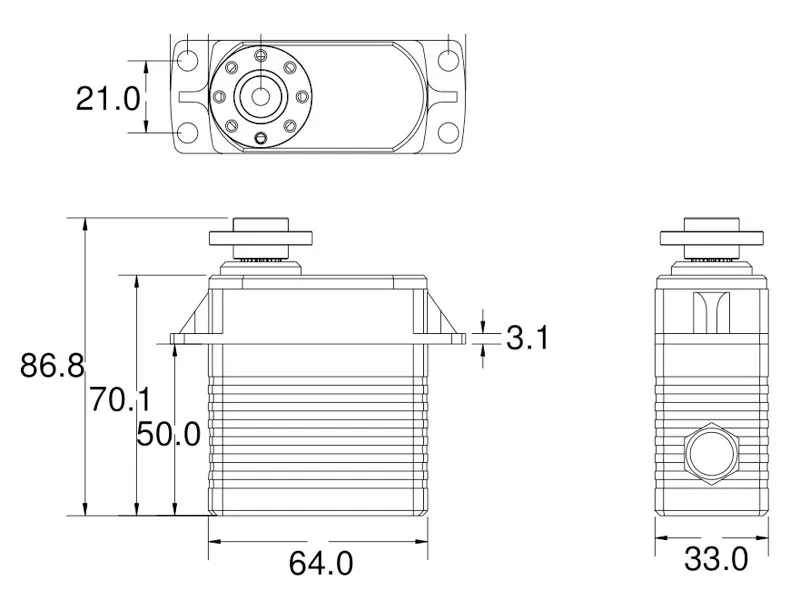

Smart servo Drawing

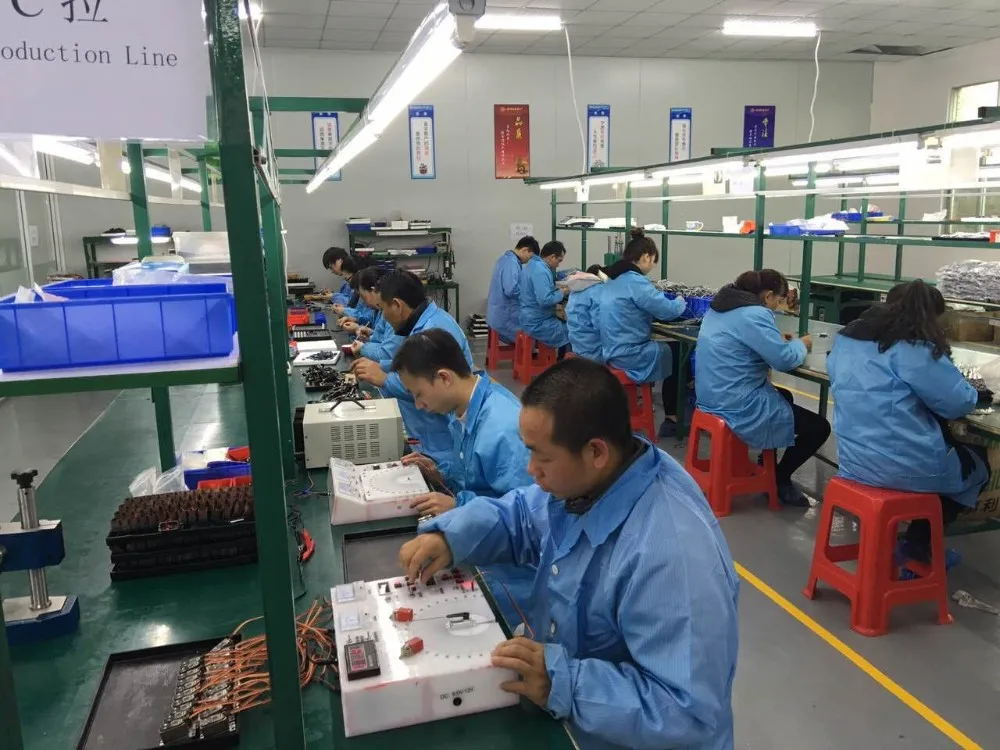

Smart servo QC

Incoming materials quality control



     Finished servo quality control

Certifications
Servo Application

K-Power servo have wide application, like as for RC robot, smart home, electronic digital lock,
RC car, UAV drone, industrial equipment. agricultural equipment, RC car, RC airplane......

Our Company

K-power is a professional servo manufacturer since 2005 and passed ISO9001,
We are specializing in servo for RC robot, smart home, RC model, RC car,
industrial equipment and agricultural machinery, our servo has passed CE, FCC, ROHS certifications,we can ODM&OEM servo according customers' request.

FAQ

Q: What certifications do your servo has?
A: Our servo have FCC, CE, ROHS certification.

Q: Can I get a free sample?
A: Some servo support free sample, some do not support, please contact with us for more detailed information.

Q: What is the pulse width of servo?
A: It is 900~2100usec if no special requirement, please do contact with us if you need special pulse width.

Q: What is your servo's rotation angle?
A: The rotation angle can be adjusted according to your requirements, but it is 120° at default, please do contact with us if you need special rotation angle

Q: What is your servo's communication?
A: PWM, TTL, RS485 are optional. most of servo are PWM at default, please do contact with us if you need not PWM.

Q: Can I get servo with un-typical case?
A: Yes, we are professional servo manufacturer since 2005, we have exellent R&D team, we can R&D servo according to customers' requirements, give you a totally support, we has R&D and manufactured all kinds of servo for many companies so far, like as servo for RC robot, UAV drone, smart home, industrial equipment...

Q: How long can I take my servo?
A: - Order less than 5000pcs, it will take 3-15 business days.
    - Order more than 5000pcs, it will take 15-20 business days.

Q: For a customized servo, how long is the R&D time (Research&Development time)?
A: Normally, 10~50 business days, it depands on requirements, just some modification on standard servo or a totally new design item.
