K-power 08YY 3kg torque micro metal gear AI humaniod robot servo

FOB Reference Price:Get Latest Price
$5.00 - $10.00 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Use:
Vehicles & Remote Control Toys
Place of Origin:
Guangdong, China
Brand Name:
K-power
Model Number:
08YY
Servo model:
08YY
Motor:
Coreless
Case material:
Plastic
Gear material:
Metal
Communication:
PWM or TTL
Operation Voltage:
4.8-8.4V
Splining:
15T
Application:
RC robot, e-lock
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
PE bag package
Port
Shenzhen, Guangzhou, Hongkong
Lead Time :
10-25 days after payment received
Product Description

K-power 08YY 3kg torque micro metal gear AI humaniod robot servo

Feature:

1) Micro servo, very light, only about 13g;

2) High precision;

3) Rotation angle up to 180°

4) Special design for digital lock, RC robot

Parameter:

Model Type: Digital Servo 08YY
Motor Type: Coreless
Case material: Plastic
Gear material: Metal
Weight: 13g

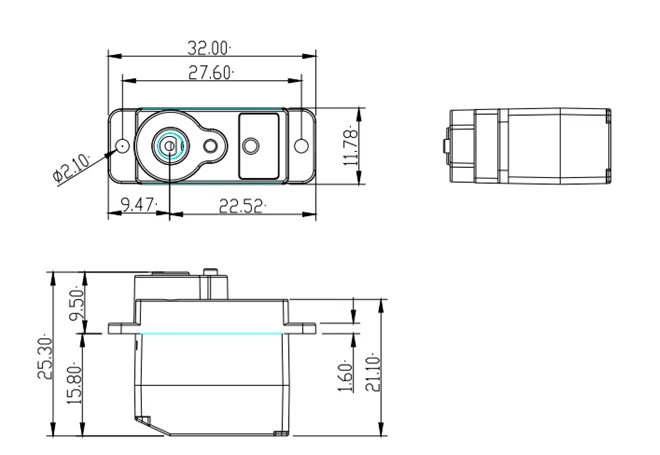

Dimension: 24*12*21mm
Operation Voltage: 4.8-8.4V
Torque: 3kg-cm/5.0V ; 4kgkg-cm/8.4V
Speed: 0.13sec/60°/5.0V; 0.11sec/60°/8.4V

Communication: PWM / TTL
Pulse Width: 500-2500
Interface Type: JR / FT / JST1.5 / JST2.0 / Other for option
Operating Temperature: -20 to 70 centigrade
Spling: 15T
Wire Length: Based on requirement
Certification: CE & FCC
Application: RC robot, Smart home,e
-lock,
Service: ODM&OEM service

Detailed Images
Quality control

Incoming materials quality control



     Finished servo quality control

Certifications
Servo Application

K-Power servo have wide application, like as for RC robot, smart home, electronic digital lock,
RC car, UAV drone, industrial equipment. agricultural equipment, RC car, RC airplane......

Our Company

K-power is a professional servo manufacturer since 2005 and passed ISO9001,
We are specializing in servo for RC robot, smart home, RC model, RC car,
industrial equipment and agricultural machinery, our servo has passed CE, FCC, ROHS certifications,we can ODM&OEM servo according customers' request.

FAQ

Q: What certifications do your servo has?
A: Our servo have FCC, CE, ROHS certification.

Q: Can I get a free sample?
A: Some servo support free sample, some do not support, please contact with us for more detailed information.

Q: What is the pulse width of servo?
A: It is 900~2100usec if no special requirement, please do contact with us if you need special pulse width.

Q: What is your servo's rotation angle?
A: The rotation angle can be adjusted according to your requirements, but it is 120° at default, please do contact with us if you need special rotation angle

Q: What is your servo's communication?
A: PWM, TTL, RS485 are optional. most of servo are PWM at default, please do contact with us if you need not PWM.

Q: Can I get servo with un-typical case?
A: Yes, we are professional servo manufacturer since 2005, we have exellent R&D team, we can R&D servo according to customers' requirements, give you a totally support, we has R&D and manufactured all kinds of servo for many companies so far, like as servo for RC robot, UAV drone, smart home, industrial equipment...

Q: How long can I take my servo?
A: - Order less than 5000pcs, it will take 3-15 business days.
    - Order more than 5000pcs, it will take 15-20 business days.

Q: For a customized servo, how long is the R&D time (Research&Development time)?
A: Normally, 10~50 business days, it depands on requirements, just some modification on standard servo or a totally new design item.
