K-power DHV828 30kg torque digital metal gear UAV drone servo

FOB Reference Price:Get Latest Price
$40.00 - $50.00 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Use:
Vehicles & Remote Control Toys
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
K-power
Model Number:
DHV828
Servo model:
DHV828
Motor:
Coreless
Case material:
Full Aluminum case
Gear material:
Titanium
Bearing Type:
2BB
Operation Voltage:
6-12V
Splining:
25T
Waterproof:
Yes
Application:
UAV drone
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Box packing(30kg servo)
Port
Shenzhen, Guangzhou, Hongkong
Lead Time :
10-25 days after payment received
Product Description

K-power DHV828 30kg torque digital metal gear UAV drone servo

Feature:

1) High precision metal gears made by CNC.30KG servo;
2) Brushless motor providing high speed, excellent durability;
3) Extremely strong Titanium gears ensure long-

life and durability, high precision

Parameter:

Model Type: Digital Servo DHV828
Motor Type: Coreless
Case material: Aluminum Whole Case
Gear material: Titanium
Bearing Type: 2BB
Weight: 72g / 2.5oz
Dimension: 40*20*37mm³ / 1.6*0.8*1.5in³
Operation Voltage: 6-7.4V
Torque: 27.7kg-cm/6.0V; 29.2kg-cm/7.4V
             382oz-in/6.0V; 402oz-in/7.4V
Speed: 0.15sec/60°/6.0V; 0.13sec/60°/7.4V
Pulse Width: 1000-1500
Dead band width: 2μs
Interface Type: JR / FT / JST1.5 / JST2.0 / Other
Operating Temperature: -20 to 60 centigrade
Spling: 25T
Wire Length: Based on your requirement
Waterproof: Yes
Certification: CE & FCC
Application: RC robot, rc car, industrial/agricultural equipment
Service: ODM&OEM service

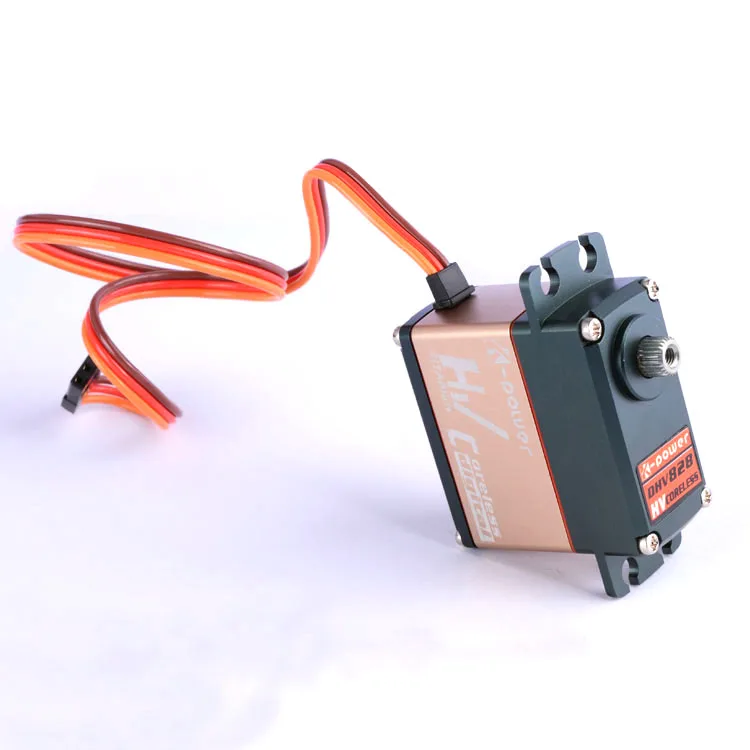

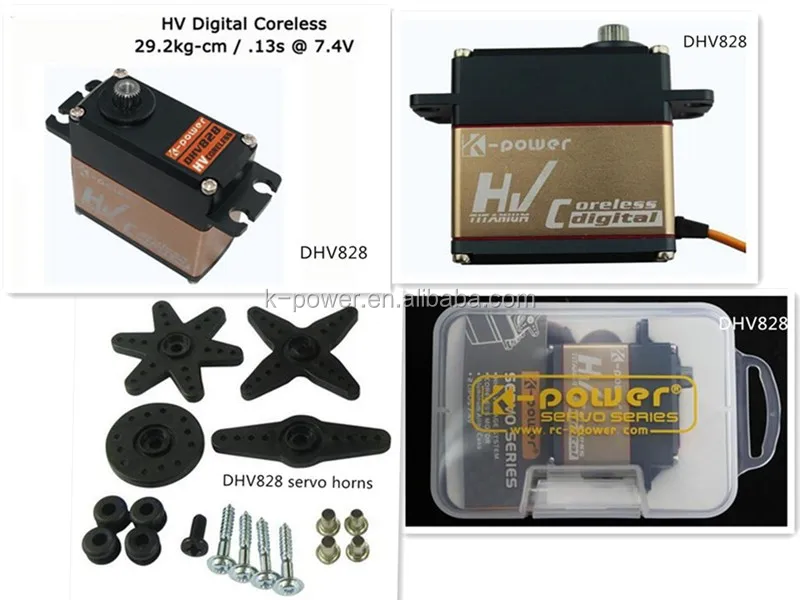

Detailed Images
Packing & Delivery

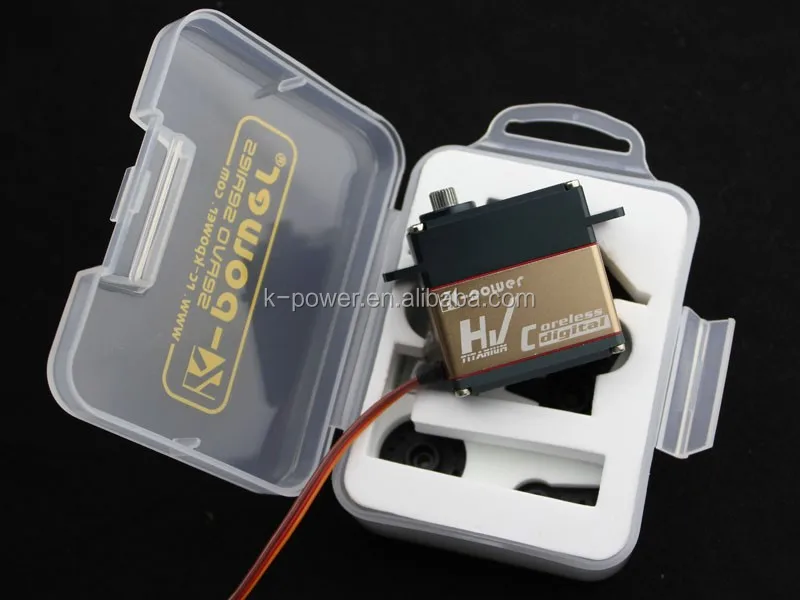

Plastic box package

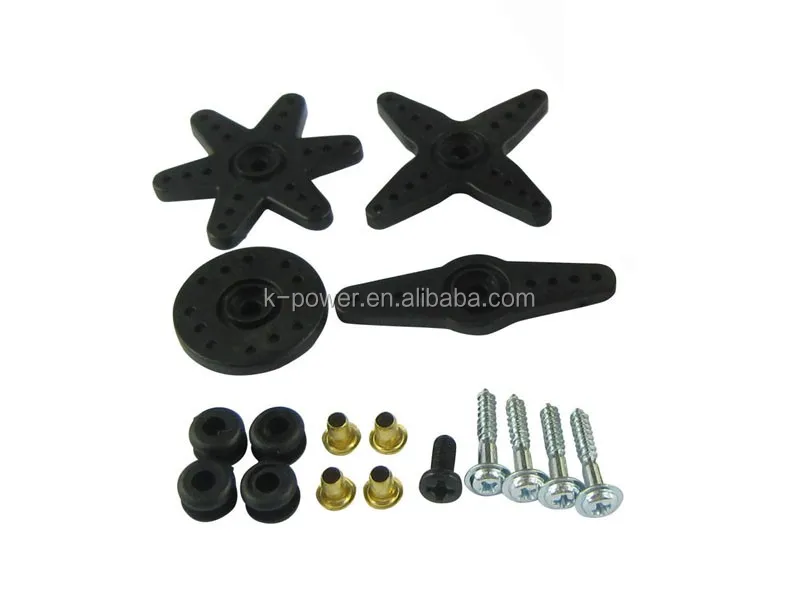

                        Servo accessories bag

Certifications
Application
                                      UAV Drone

                                UAV drone

Our Company

K-power is a professional servo manufacturer since 2005 and passed ISO9001,
We are specializing in servo for RC robot, smart home, RC model, RC car,
industrial equipment and agricultural machinery, our servo has passed CE, FCC, ROHS certifications,we can ODM&OEM servo according customers' request.

FAQ


Q: What certifications do your servo has?
A: Our servo have FCC, CE, ROHS certification.

Q: Can I get a free sample?
A: Some servo support free sample, some do not support, please contact with us for more detailed information.

Q: What is the pulse width of servo?
A: It is 900~2100usec if no special requirement, please do contact with us if you need special pulse width.

Q: What is your servo's rotation angle?
A: The rotation angle can be adjusted according to your requirements, but it is 120° at default, please do contact with us if you need special rotation angle

Q: What is your servo's communication?
A: PWM, TTL, RS485 are optional. most of servo are PWM at default, please do contact with us if you need not PWM.

Q: Can I get servo with un-typical case?
A: Yes, we are professional servo manufacturer since 2005, we have exellent R&D team, we can R&D servo according to customers' requirements, give you a totally support, we has R&D and manufactured all kinds of servo for many companies so far, like as servo for RC robot, UAV drone, smart home, industrial equipment...

Q: How long can I take my servo?
A: - Order less than 5000pcs, it will take 3-15 business days.
    - Order more than 5000pcs, it will take 15-20 business days.

Q: For a customized servo, how long is the R&D time (Research&Development time)?
A: Normally, 10~50 business days, it depands on requirements, just some modification on standard servo or a totally new design item.
