K-power RD13T 13kg High Torque RC Servo Motor for Humanoid Robot Arm DIY with TTL

FOB Reference Price:Get Latest Price
$15.00 - $25.00 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Robot
Material:
Plastic
Scale:
Other
Radio Control Style:
RC Hobby
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
K-power
Model Number:
RD13T
Motor Type:
Cored Motor
Gear material:
7075 Aluminium Coated With Titanium
Case material:
Engineering Plastic
Dimension::
44.1*22.4*29.2mm
Voltage Range:
DC 4.8-8.4V
Stall Torque:
1.28N.M(13kg.cm)
No load Speed:
34.5rpm(0.29s/60°)
Certificate::
CE & FCC
Application:
Robot Joints Servo
Style:
Radio Control Toy
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Package. Also can depend on your demands.
Port
Shenzhen, Guangzhou, Hongkong
Lead Time :
7-25 days after payment received. Also depends on the quantity.
Product Features

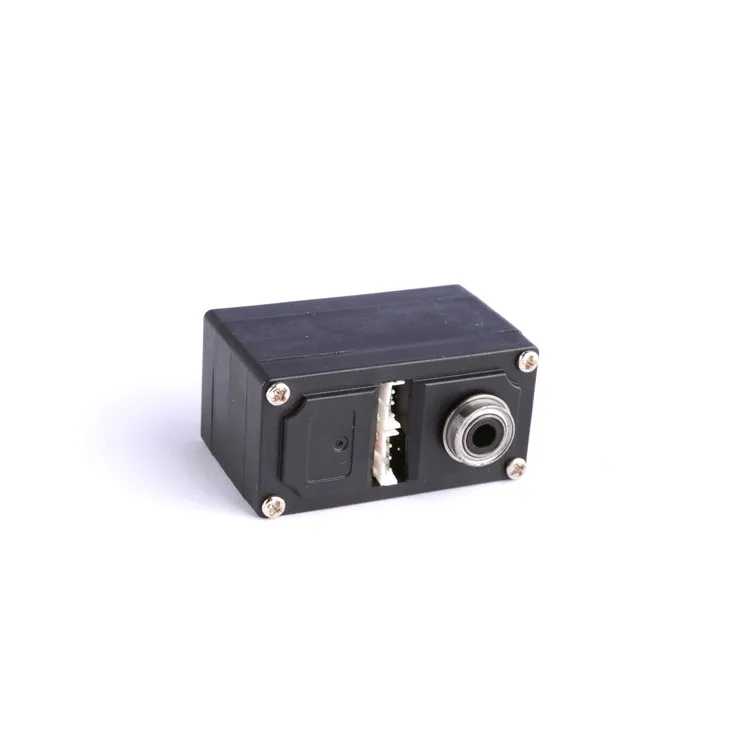

K-power RD13T RC Servo Motor for Humanoid Robot Arm DIY with TTL:


1.28N.M(13kg.cm) High Torque

> High voltage, incredible efficiency
> High-strength metal gears ensure the servo’s life-cycle

> Cored DC servo motor

> Perfect 300 Degree Rotation Robot Servo

> TTL Communication (Up To 115200 baud rate)

Model Number
RD13T
Dimension
44.1*22.4*29.2mm
Weight
46.5g
Voltage Range
DC 4.8-8.4V
Rated Voltage
6.0V
Stall Torque
1.28N.M(13kg.cm)
No load Speed
34.5rpm(0.29s/60°)
Motor Type
Cored Motor
Resolution
0.29°
Running Degree
0-300°
Mode
Servo/Wheel Mode(endless rotation)
NO.of Wire
3Pin for TTL/ 4Pin for RS485
ID
0-254
Feedback
Position, Speed, Load
Position Sensor
Potentiometer
Sheel
Engineering Plastic
Gear
7075 Aluminium Coated With Titanium
Any requirement, please feel free to tell us.
Customized the service for you! Thanks!
Products Show
Product Processing
Why choose us

Professional

1, Having over 13 years’ experience in China, supplier of HOBBICO / SHARP / STARA / FOXCONN etc.

R&D Support

2, Professional R&D Department can provide the supports of constructional design and software.

High quality

3, stable product quality , supply, the good faith management.

Our Certifications
FAQ

Q: Can I get a free sample?

A: Some servos support free sample. Please contact with us for more detailed information.

Q: What is your servo's rotation angle?

A: The rotation angle can be adjusted according to your requirements, but it is 0~120 degree if no requirement, please do contact with us if you need special rotation angle.

Q: What is your servo's communication?

A:  PWM, TTL, RS485 are optional. most of servo are PWM if no requirement, please do contact with us if you need not PWM.

Q: Can I get customized servo?

A: Of course! we have an excellent and Professional R&D Department, providing the supports for both constructional design and software. Perfect customization services are our main business.

We are confident we can make any to suit your application!

Q: For a customized servo, how long is the R&D time (Research & Development time)?

A: Normally, 10~50 business days depends on your requirements.
