K-POWER K-AX12 15kg/CM 1.5N/m torque humanoid robot rc servo support TTL proposal

FOB Reference Price:Get Latest Price
$15.00 - $25.00 / Pieces | 2 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Style:
Battery Operated Toy, Cartoon Toy, Diecast Toy, DIY Toy, Educational Toy, Electronic Toy, Magnetic Toy, Model Toy, Musical Toy
Place of Origin:
Guangdong, China
Brand Name:
K-POWER
Model Number:
K-AX12
Stall torque:
1.5N/m (at 12V)
Communication proposal:
Half duplex Asynchronous Serial Communication
Link (physical):
TTL bus connection
Operation speed:
59rpm/12V
Operating travel:
0~300°
Size:
32mm x 50mm x 40mm
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
PE bag. Also can depend on your demands.
Port
Shenzhen, Guangzhou, Hongkong
Lead Time :
10-25 days after payment received
Product Features

K-POWER K-AX12 15kg/CM 1.5N/m torque humanoid robot rc servo:


Support Communication Protocol: TTL

> High torque and high voltage, incredible efficiency

> Coreless digital servo

> High product quality

Weight
60g
Size
32mm * 50mm * 40mm
Reduction ratio
254:1
Operation Voltage
9 ~ 12V
Stall torque
1.5N/m (at 12V)
Stall current
1.5A (at 12V)
Idle current
50mA
Operation temperature
-5℃ ~ +70℃
Operation speed
59rpm (at 12V)
Operating travel
Actuator Mode : 300°
Wheel Mode : Endless turn
Revolution
0.29°
Position sensor
ALPS potentiometer
Command signal
Digital Packet
Communication proposal
Half duplex Asynchronous Serial Communication(8bit, 1stop, No Parity)
Link (physical)
TTL bus connection
ID
254 ID (0~253)
Baud Rate
9600 ~ 2M
Feedback
Position, Temperature, Load, Input Voltage, etc.
Application:
Humanoid Robot / Robot DIY
Any requirement, please feel free to tell us.
Customized the service for you! Thanks!

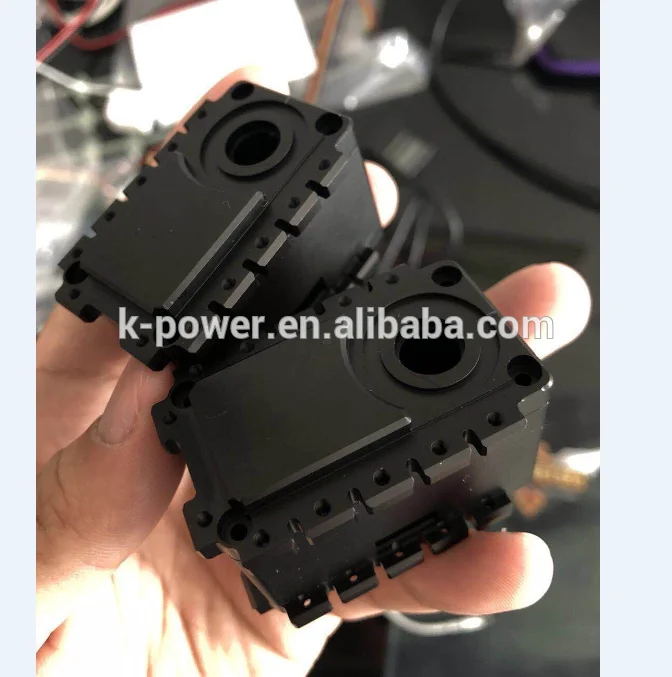

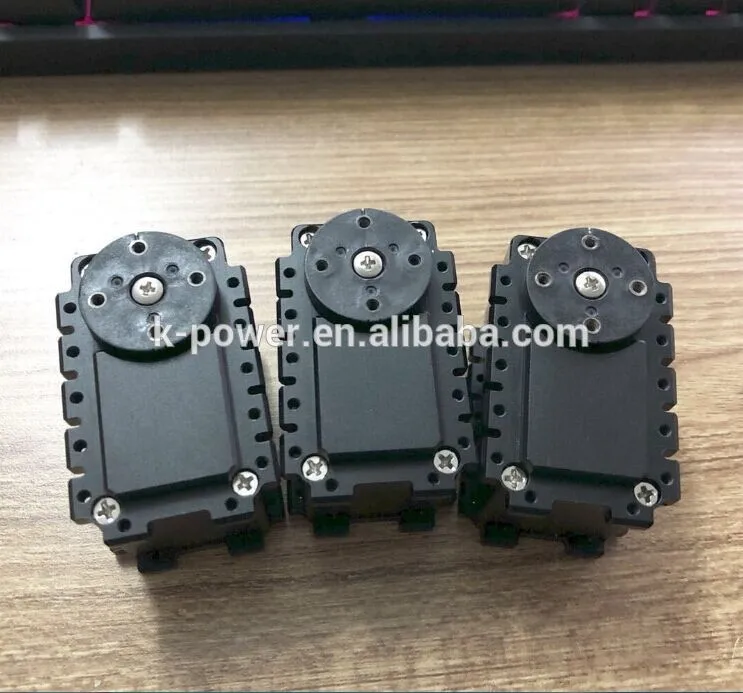

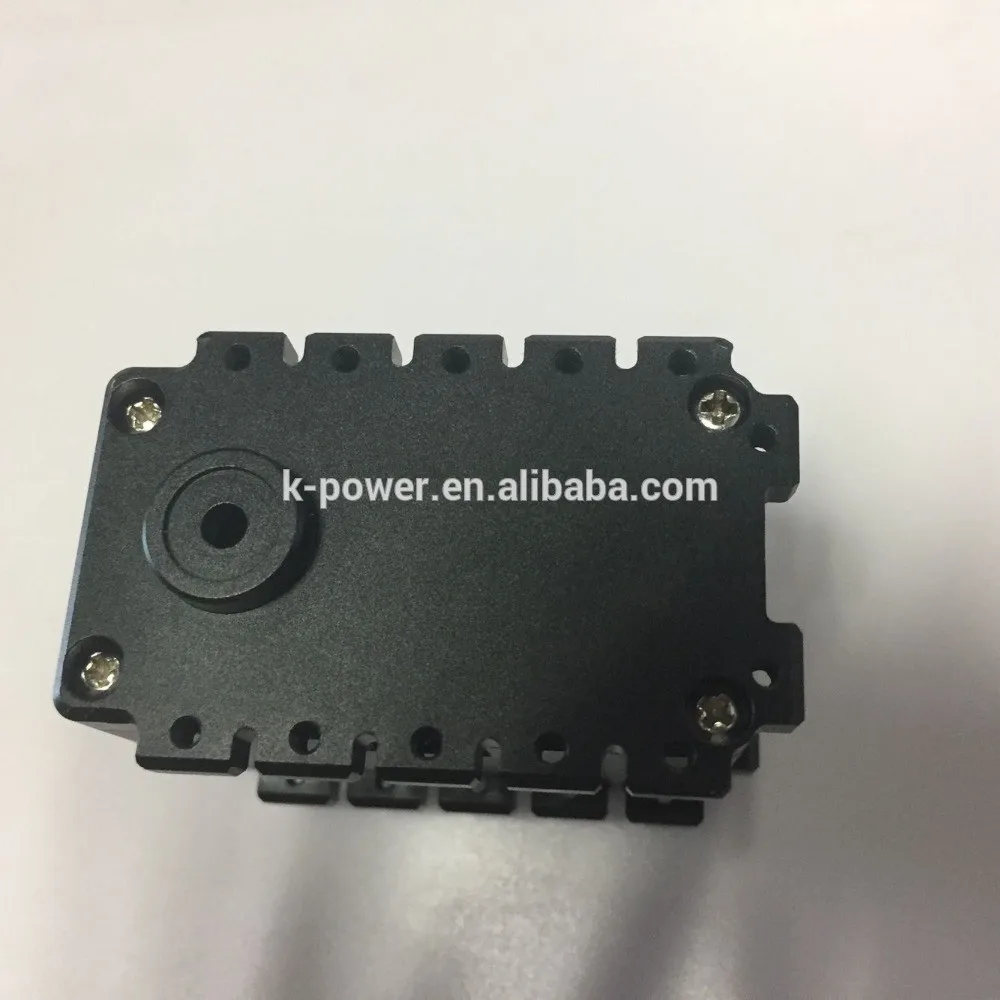

Product Details Show
Product Processing
Why choose us

Professional

1, Having over 13 years’ experience in China, supplier of Supplier of DJI / HOBBICO / SHARP / STARA / FOXCONN etc.

R&D Support

2, Professional & Department can provide the supports of constructional design and software.

High quality

3, stable product quality , supply, the good faith management

FAQ

Q: Can I get a free sample?

A: Some servos support free sample. Please contact with us for more detailed information.

Q: What is your servo's rotation angle?

A: The rotation angle can be adjusted according to your requirements, but it is 0~120 degree if no requirement, please do contact with us if you need special rotation angle.

Q: What is your servo's communication?

A:  PWM, TTL, RS485 are optional. most of servo are PWM if no requirement, please do contact with us if you need not PWM.

Q: Can I get customized servo?

A: Of course! we have an excellent and Professional R&D Department, providing the supports for both constructional design and software. Perfect customization services are our main business.

We are confident we can make any to suit your application!

Q: For a customized servo, how long is the R&D time (Research & Development time)?

A: Normally, 10~50 business days depends on your requirements.
